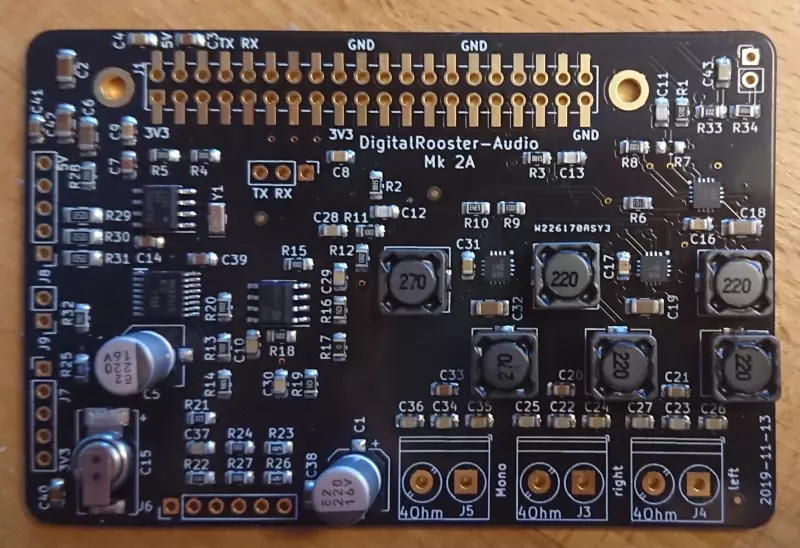

DigitalRooster Mk2A

Complexity is an addictive feature. Once you have build something complex that works you are proud of yourself. Telling everyone “look what great job I have done mastering this complex technology”. When you realize that there is also an easier way to do the same it is hard to scrap your work. After all you will have nothing to show later.

Digitalrooster-MK2A had this problem with the shutdown circuit. To avoid popping noise of the MAX98357A audio codecs I came up with a low time delay filter that was intended to deassert the shutdown signal of the chips after a short delay when I2S bitclock was running.
First it didn’t really work because the delay was too short - this I fixed by increasing the capacitance of the low-pass.
Second this entire circuit was not necessary. The Linux driver for MAX98357A includes support for a shutdown line. By sacrificing one GPIO I was able to eliminate an IC and a bunch of passive components.

Once more I realized that Raspberry Pi with Raspbian and Adafruit hardware is not targeted for experienced embedded engineers. The Speakerbonnet I used so far does not wire the shutdown pin to a GPIO. What did suprise me even more the documentation tells to use a device tree overlay for hifiberry-dac. This board uses a different audio codec, compatible but different.

Another issue we faced were slightly different display assemblies. There several almost identical capacitive PiTFT2.8”!

  • Adafruit PiTFT2.8” part no 2423 with gpio buttons
  • Adafruit PiTFT2.8” part no 1983 without gpio buttons

While I was using the one without GPIO buttons. My friend bought the one with buttons. The buttons interfere with the Pins used for the rotary encoder.

I finished a new design and layout “DigitalRooster-Mk3A” and placed an order with pcbway.com. Unfortunately they are also affected by the Corona virus pandemic and assembly lead times have increased to 55-60 days. Maybe beginning of May I will receive a the order.

The manufacturing costs for prototype quantities are still considerable and not suited for small series. At the moment the PCB assembly is 40$ without taxes. This is mainly driven by component costs, especially the fancy Amphenol 89898-320LF 40 pin SMD header that can be plugged form top or bottom (>5 US$)!
